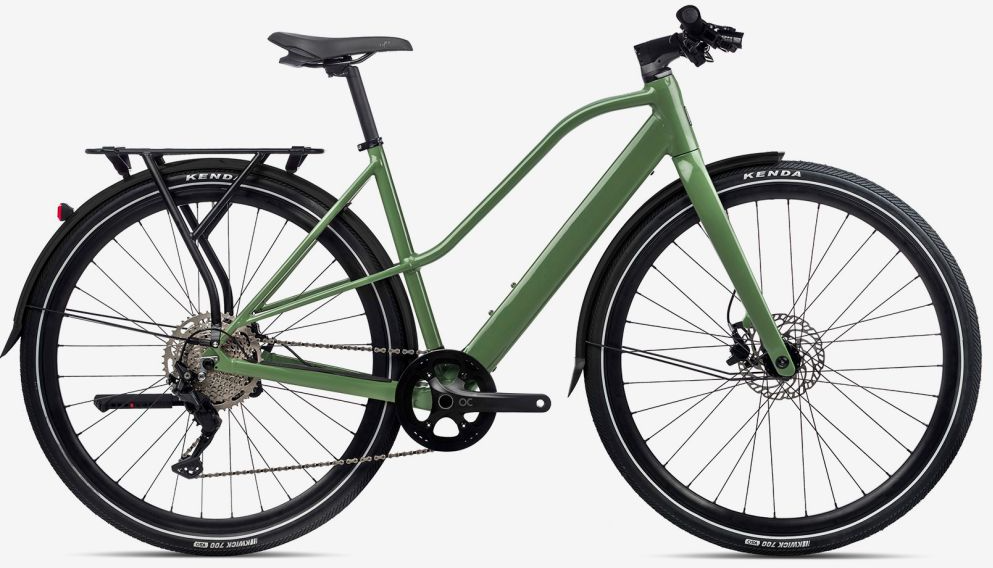

Orbea Vibe Mid H30 EQ 20mph
$3,499.99
Details
In the spirit of urban function and easy use, we have developed a new transportation concept designed for your life. A machine that is also a sophisticated accessory that echoes your sense of style without overshadowing it—a sleek, fun, reliable tool that can be easily maneuvered into apartments or workplaces. Vibe is a bike that is light weight and enjoyable to ride—with a motor, battery and integrated electronics system designed for the fast-paced, grab-and-go lifestyle of the city.
| Small | Medium | Large | |
|---|---|---|---|
| 1 - SEAT TUBE (C-T) | 455 | 490 | 525 |
| 2 - TOP TUBE (EFF) | 517 | 540 | 562 |
| 3 - HEAD TUBE | 108 | 140 | 160 |
| 4 - CHAINSTAY | 435 | 435 | 435 |
| 5 - BB HEIGHT | 280 | 280 | 280 |
| 6 - BB DROP | 76 | 76 | 76 |
| 7 - WHEELBASE | 1026 | 1048 | 1040 |
| 8 - HEAD ANGLE | 70º | 70.5º | 71.5º |
| 9 - SEAT ANGLE | 75º | 74.5º | 74º |
| 10 - STANDOVER | 723 | 732 | 747 |
| 11 - REACH | 380 | 395 | 400 |
| 12 - STACK | 546 | 580 | 600 |
| 13 - FORK LENGTH | 410 | 410 | 410 |
| 14 - RAKE | 44 | 44 | 44 |
| 15 - WHEEL SIZE | 712 | 712 | 712 |
| Frame Size | Rider height (in) |
|---|---|
| Small | 59.1"-65.0" |
| Medium | 65.0"-68.9" |
| Large | 68.9"-74.8" |
Due to supply-chain issues, Specs are subject to change without notice.
Specs
| Frame | Orbea Vibe Mid Bar Hydro 6061 Hydroform Aluminum 2021, ICR cable routing, Forged BB, 135x9 QR, Flat Mount disc, 700x45 maximun tire, 1" 1/2 semi head set, 41x86,5 Pressfit BB, carrier and fenders compatible |
|---|---|
| Fork | Orbea Vibe carbon fork, full carbon, 1-1/5, 700x45 maximun tire, flat mount disc mount, Thrue Axle12x100mm, Long mudguards compatible. |
| Wheels | Alloy, Tubeless, 700c, 21c, 32H |
| Axles | Orbea Thru Axle 12x100mm M12x2 P1 Hollow |
| Tires | Kenda K1052 700x45C Reflective type+puncture protection |
| Crankset | Forged alloy, 42t, w/Chainguard |
| Shifters | Shimano Deore M4100 |
| Rear Derailleur | Shimano Deore M5120 SGS Shadow Plus |
| Cassette/Freewheel | Shimano CS-M4100 11-46t 10-Speed |
| Chain | KMC X10 |
| Brakes | Magura MT30 Hydraulic Disc Easy Route Connection |
| Handlebars | Alloy ,31.8mm, Rise 12mm, 700mm |
| Stem | Alloy forged, -6º, ICR |
| Headset | Acros Alloy 1-1/2" Internal Cable Routing |
| Seatpost | Alloy, 27.2mm, Setback 20 |
| Saddle | Selle Royal Lift 1404 HRN 266x170mm |
| Pedals | VP-537 Black |
| Motor | Mahle motor hub X35 Plus |
| Battery | Mahle 36V/6.9A 248Wh ANT+ |
| Controller/Display | Mahle iWoc TRIO |
| Charger | Mahle X35 |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Urban Green (Gloss) / Medium | 08434446249020 | N61249YI | 210000003610 |
