Details

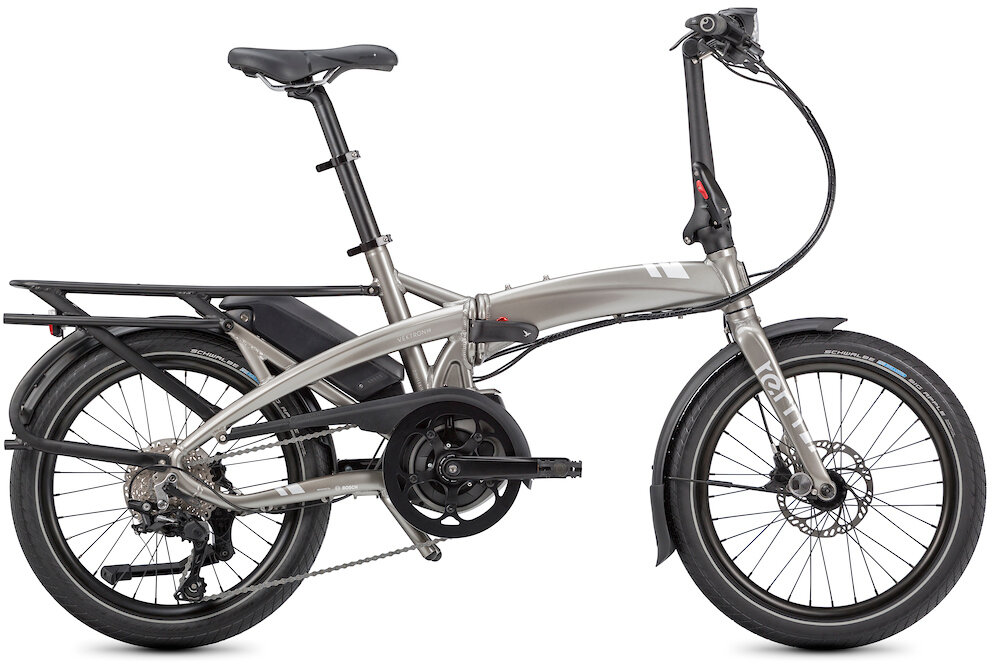

Ride it, Fold it, Go Further. The Vektron is a best-in-class electric bike that folds in 10 seconds to go on trains, in cars, and under desks. Shorten distances and flatten the hills on your commute, or put a couple of Vektrons in the trunk of your car on your next trip, so you can explore further. With an updated frame, upgraded Bosch motors, and a wide ecosystem of accessories to help you carry your stuff, the Vektron will easily turn a lot of your car trips into bike trips. The Vektron has a low-step frame design and resizes in seconds—no tools required—to fit riders between 4'10" – 6'5", so you can share the bike with anyone in your family.
- Upgraded to the Bosch Performance electric drivetrain for 300% more assistance and 65 Nm of torque
- Updated frame with a reclining battery for a lower center of gravity and a better ride
- Frame passed strict European safety standards for pedal-assist e-bikes, having been certified as EN15194-compliant by EFBE Prüftechnik
- Integrated Atlas Rack works seamlessly with Thule Yepp Maxi and Nexxt Maxi child seats—no adapters needed
Size/Weight
- Distance: Seatpost To Handlebar: Min: 620 mm (24.4") Max: 690 mm (27.2")
- Distance: Saddle To Pedal: Min: 670 mm (26.4") Max: 1100 mm (43.3")
- Suggested Rider Height: 147 - 195 cm (4'10" - 6'5")
- Max Load Weight: 105 kg (230lb)
- Max Gross Vehicle Weight: 125 kg (275lb)
- Max Rider Weight: 105 kg (230lb)
Specs
Frame | Tern Vektron, hydroformed 7005-AL, OCL+ joint, 3 patented technologies |
---|---|
Fork | Tern Tarsus, 6061-Al, hydroformed |
Rims | Kinetix Comp, for disc |
Hubs | Novatec, sealed cartridge bearing, disc |
Spokes | Stainless steel, double-butted |
Tires | Schwalbe Big Apple, Performance Line, 55-406, puncture protection, Reflex |
Crankset | Vektron custom, forged 6061-AL crankarm |
Shifters | Shimano Deore, 1 x 10 spd |
Rear Derailleur | Shimano Deore Shadow+ |
Cassette/Freewheel | Shimano 11-36T, 10 spd |
Chain | 10 spd, DHT for eBike, GST corrosion-resistant coating |
Brakes | Magura MT4, hydraulic disc |
Brake Levers | Magura, hydraulic disc |
Handlebars | Kinetix Comp, double-butted 6061-AL, Tern Andros adapted |
Tape/Grips | Ergon |
Stem | Tern Andros, adjustable, forged construction, patented technology |
Headset | Flux Pro, angular contact bearings, Physis integrated |
Seatpost | Tern Telescope, 34.9/30.9 mm, 2014-AL |
Saddle | Tern Porter+, patented GripPad design, PrimeGel padding |
Pedals | MKS EZY |
Accessories & Extras |
BELL: Aluminum CHAINGUARD: SKS Chainblade KICKSTAND: URSUS, rear mount CLIP SYSTEM: Magnetix 3.0 LUGGAGE SOCKET: Yes FRONT LIGHT: Tern Valo Direct, 190 lumens REAR LIGHT: Herrmans H-Trace, for eBike FENDERS: SKS, stainless hardware RACK(S): Atlas Rack, integrated 8 point mounting |
Motor | Bosch Performance, 300% Assist, 65 Nm Torque |
Battery | Bosch PowerPack 400 Wh |
Controller/Display | Bosch Purion, 4 mode selectable, walk assist |
Charger | Bosch 100-240V, 4A Charger |
* Subject to change without notice.
